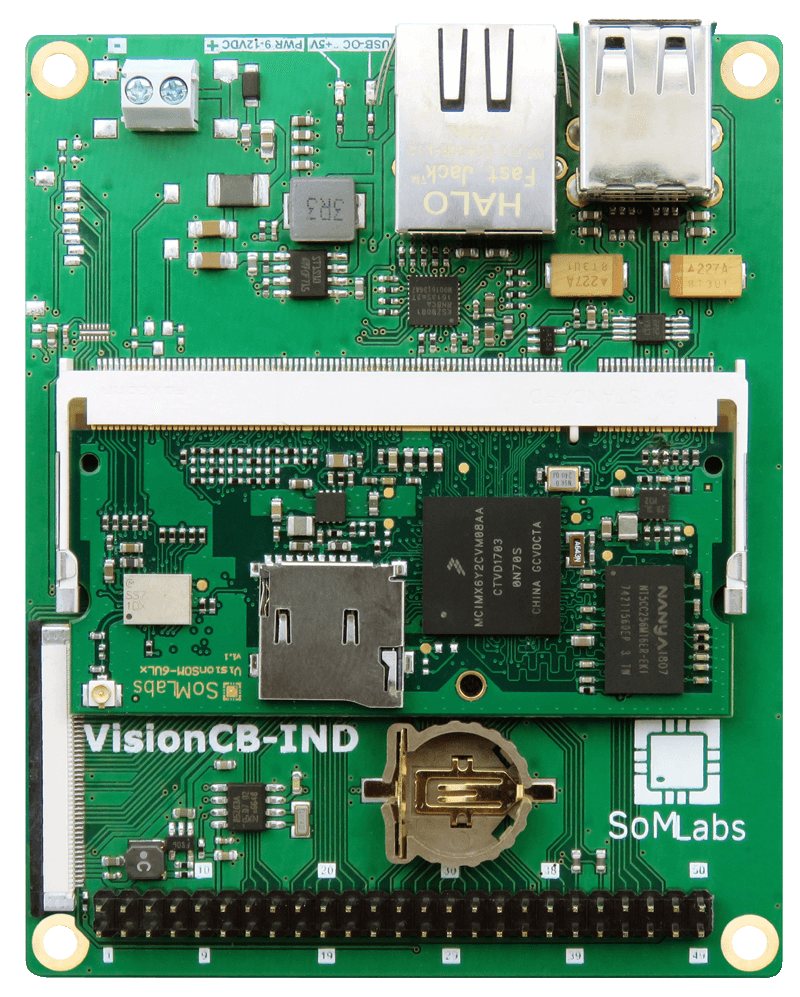

VisionCB-6ULL-IND
Carrier Board for VisionSOM System-on-Module family

VisionCB-6ULL-IND
Carrier Board for VisionSOM System-on-Module family

  • Carrier Board (Base Board) compatible with the VisionSOM family of modules
  • Ready-to-use development systems for building applications based on the VisionSOM modules
  • Well-suited for applications in industrial automation
  • Communication interfaces (USB 2.0 host, 100 Mbit Fast Ethernet)
  • Ideal for industrial IoT and embedded applications
  • Built-in RTC with battery backup

SoM Interface

SoM Interface: SODIMM200

SoM Type: VisionSOM family of modules based on NXP i.MX6UL or NXP i.MX6ULL processor (ARM Cortex-A7 single core)

Expansion Connectors

Pin Header Connector: 2×25 Pin Header (Male)

Communication Connectors

Ethernet: 1x 10/100Mbit/s, RJ45

USB Host: 2x Type A connectors

Display

Interface: 50-pin FFC/FPC Parallel RGB – 24-bit, (1366 x 768 Max. Resolution)

Embedded Real-Time Clock (RTC)

RTC Type: PCF85263AT

Power back-up: battery CR1220 (option)

Power Supply

Terminal block connector: Input Voltage 9-12V DC

Temperature Range

Industrial: -40 to +85°C

Mechanical Dimension

Board Size: 98mm x 79mm x 22mm
