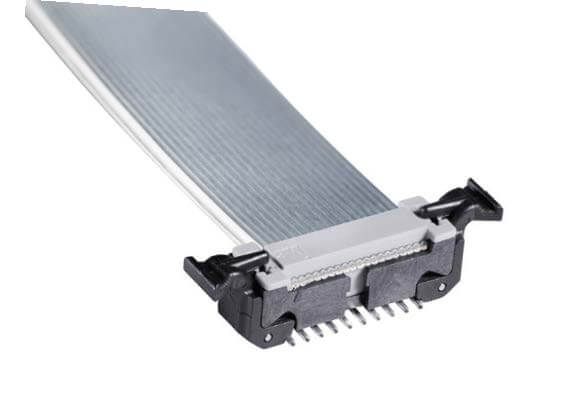

3M™ Round Conductor Flat, Controlled Impedance Cable, 7700 Series, 7700/16

30 AWG solid conductor in polyolefin (PO) insulator, laminated to a flexible foil shield

• Revolutionary ribbon cable construction that’s fast, flat, foldable – and fit for IDC!
• Terminate it to insulation displacement contact (IDC) connectors, or solder it directly to a PCB
• With 95 Ohm impedance, cable delivers up to 5 Gbps over 1 meter using the 3M™ Wire-to-Board System, 1.27 mm, 450 Series connectors
• Excellent choice for insulation-displacement contact (IDC) applications
• See 3M.com/regs for regulatory information
• For more information, refer to Customer Drawing / Data Sheet 78-5100-2667-3 (785100266731)
