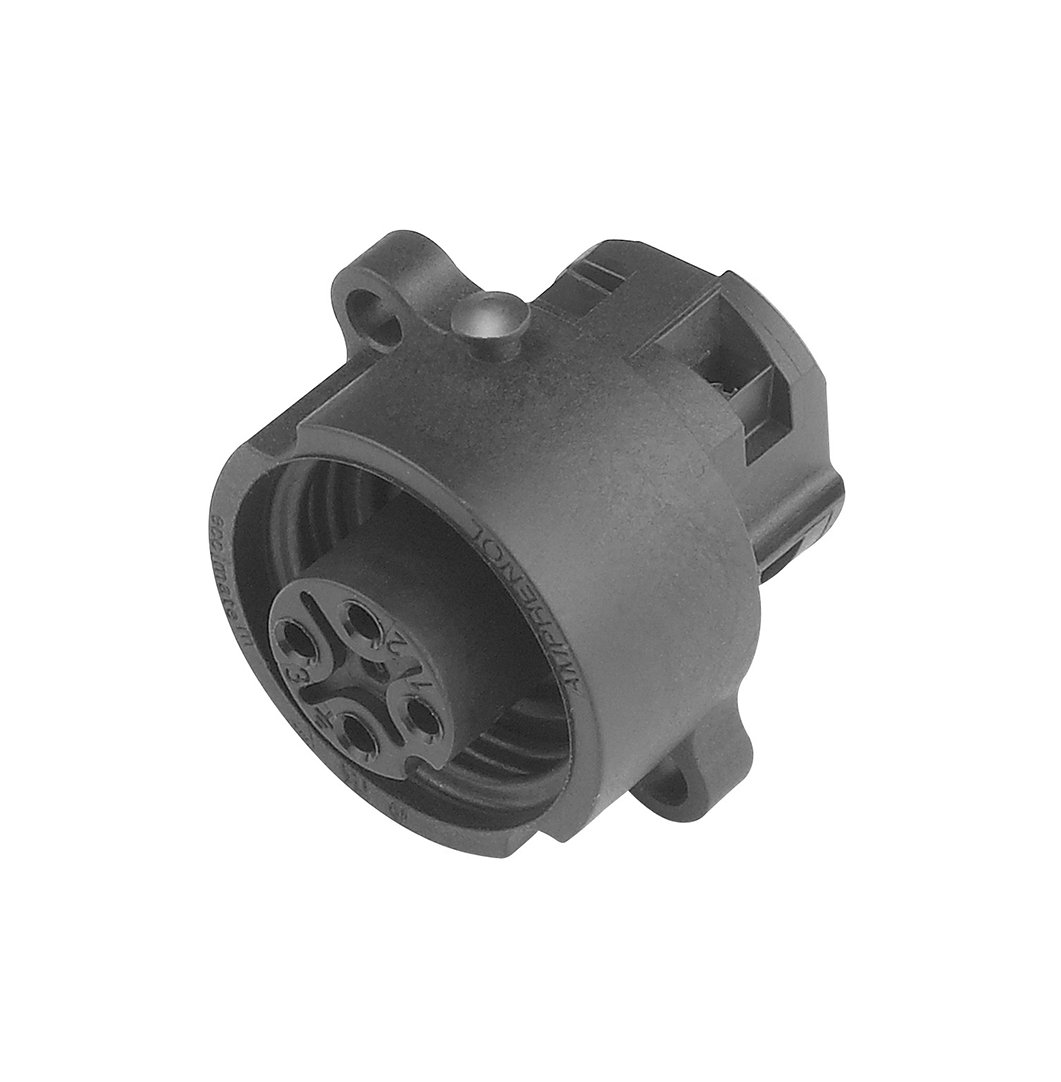

C01610G00600012-Amphenol Female Receptacle, C16-M Eco-mate Series, 6+PE

Contact Us

Description:

  • 6+PE Female receptacle
  • Crimp version
  • Crimp contacts sold separately
  • Available in gold or silver plating
  • Comparable to 09-4204-00-07

Manufacturer: Amphenol

Manufacturer Part No.: C01610G00600012

IHL Part No.: C01610G00600012

  • Number of Contacts: 6 + PE
  • Type: Crimp
  • Backshell Colour: Black
  • Rated Voltage: 250 V
  • Rated Impulse Withstand Voltage: 4000 V
  • Current Carrying Capacity: 13 A/ + 55 °C
  • Insulation Resistance: ≥ 10(8) Ω
  • Contact Resistance: ≤ 5 mΩ
  • Climatic Category: 40 / 125 / 56
  • Operating Temperature: -40°C to +125°C
  • Degree of Protection: IP67
  • Insertion and Withdrawal Force: < 30 N
  • Mechanical Operation: > 500 Mating Cycles
  • Housing Material: PA 6.6 / PA 6
  • Dielectric Material: PA 6.6 / PA 6
  • Gasket Material: Neopren
  • Material Lace for Protective Cap: TPE
  • Contact Plating: Silver Plated or Gold Plated
  • Termination Technique: Crimp
  • Wire Gauge / AWG: 0,14 – 1.5 mm² / AWG 26 – 16
  • Flammability: VO
  • Locking System: Round Thread
  • Insert: PA 6.6 / PA6
