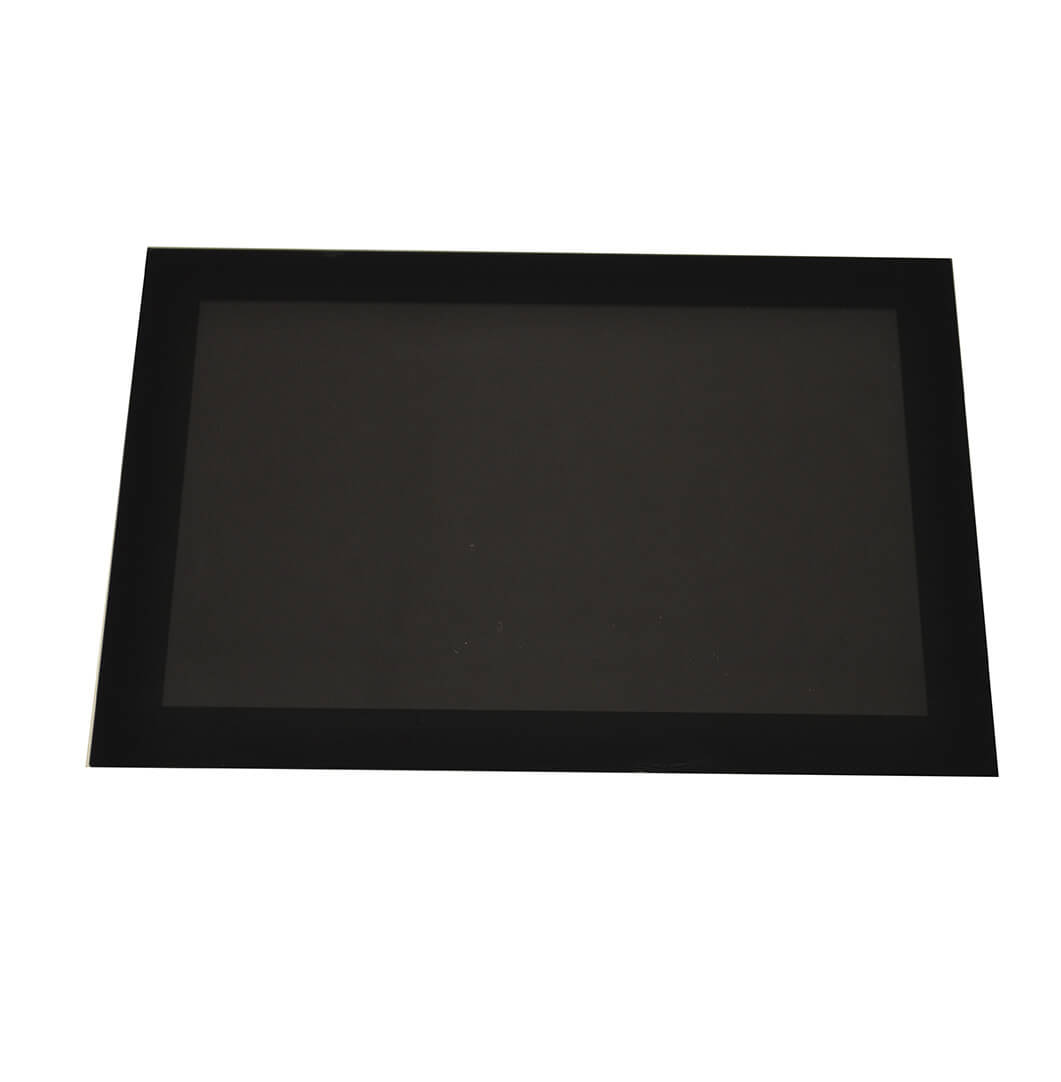

TFT Display- D9010 Series

Contact Us

Manufacturer: Powertip
Manufacturer Part No.: D9010 Series
IHL Part No.:D9010 Series

Screen Size: 10.1″

LCD Type: IPS, Normally Black, transmissive type, Anti Glare

Touch Panel Type: Projective Capacitive (PCAP)

LCD Interface: 24-bit RGB

Touch Panel Output Interface: USB

Touch panel IC: mxT1066T

Display Resolution: 1280x800px

Viewing Direction:

Viewing Angle (T/B/L/R): 85/85/85/85

Outline Dimension: 254.96(W)x173.6(L)x26.2(H)mm

Active Area: 216.96(W)x135.60(L)mm

Average Brightness: 450cd/m²

Supply Voltage: 3.3V

Contrast Ratio: 800:1

Backlight: White
