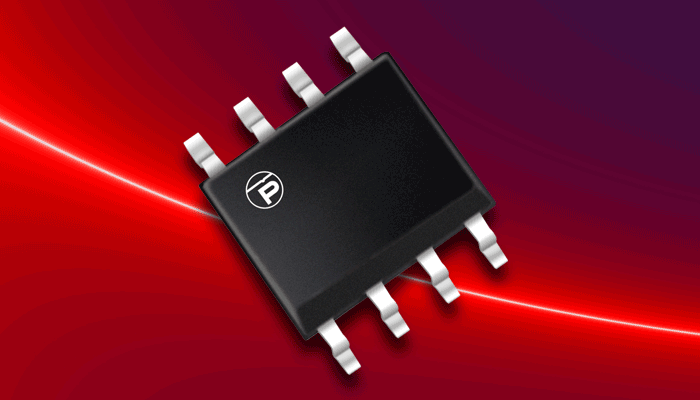

ET108

Low Capacitance Steering Diode Array
Contact Us

APPLICATIONS

  • Ethernet – 10/100/1000 Base T
  • RS-422 & RS-485
  • Microcontrollers
  • USB Interfac

FEATURES

  • IEC 61000-4-2 (ESD): Air – 15kV, Contact – 8kV
  • IEC 61000-4-4 (EFT): 40A – 5/50ns
  • IEC 61000-4-5 (Surge): 12A, 8/20µs – Level 1(Line-Gnd) & Level 2(Line-Line)
  • Provides Four (4) Lines of Protection
  • Low Leakage Current < 2.0µA
  • Ultra Low Capacitance: 6pF per Diode
  • RoHS Compliant
  • REACH Compliant
