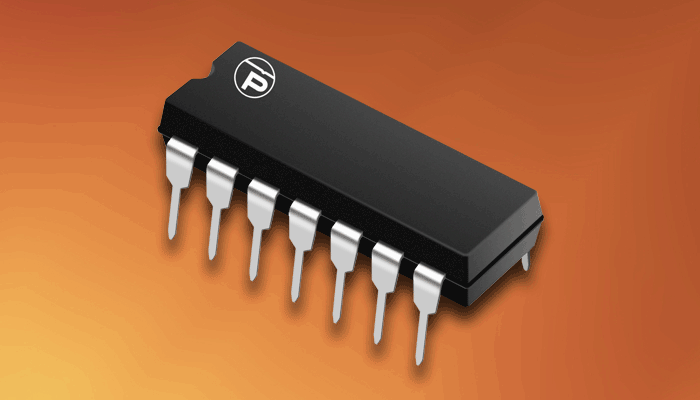

MAD SERIES

Ultra Low Capacitance Mult-Line Steering Diode Array
Contact Us

APPLICATIONS

  • High Frequency Data Lines
  • RS-232 & RS-422 Interface Networks
  • Ethernet – 10/100 Base T
  • Computer I/O Ports

FEATURES

  • IEC 61000-4-2 (ESD): Air – 15kV, Contact – 8kV
  • IEC 61000-4-4 (EFT): 40A – 5/50ns
  • IEC 61000-4-5 (Surge): 12A, 8/20µs Level 1(Line-Ground) & Level 2(Line-Line)
  • 500 Milliwatt Continuous Power Dissipation
  • Monolithic Design
  • ESD Protection > 25 kilovolts
  • Provides Protection for 7-10 I/O Lines
  • Working Voltage > 50 Volts
  • Low Leakage Current < 0.1µA
  • Ultra Low Capacitance: 5pF Per Diode
  • RoHS Compliant
  • REACH Compliant
Part NumberRep. Rev. Voltage VRRM
Volts
Forward Peak Current IF
Amps
Foward Voltage VF@IF
Volts
Leakage Current @ VRRM
µA
Capacitance
pF
Mad110350.0012.001.200.105.00
Mad110550.0012.001.200.105.00
Mad110650.0012.001.200.105.00
Mad110750.0012.001.200.105.00
Mad110950.0012.001.200.105.00
