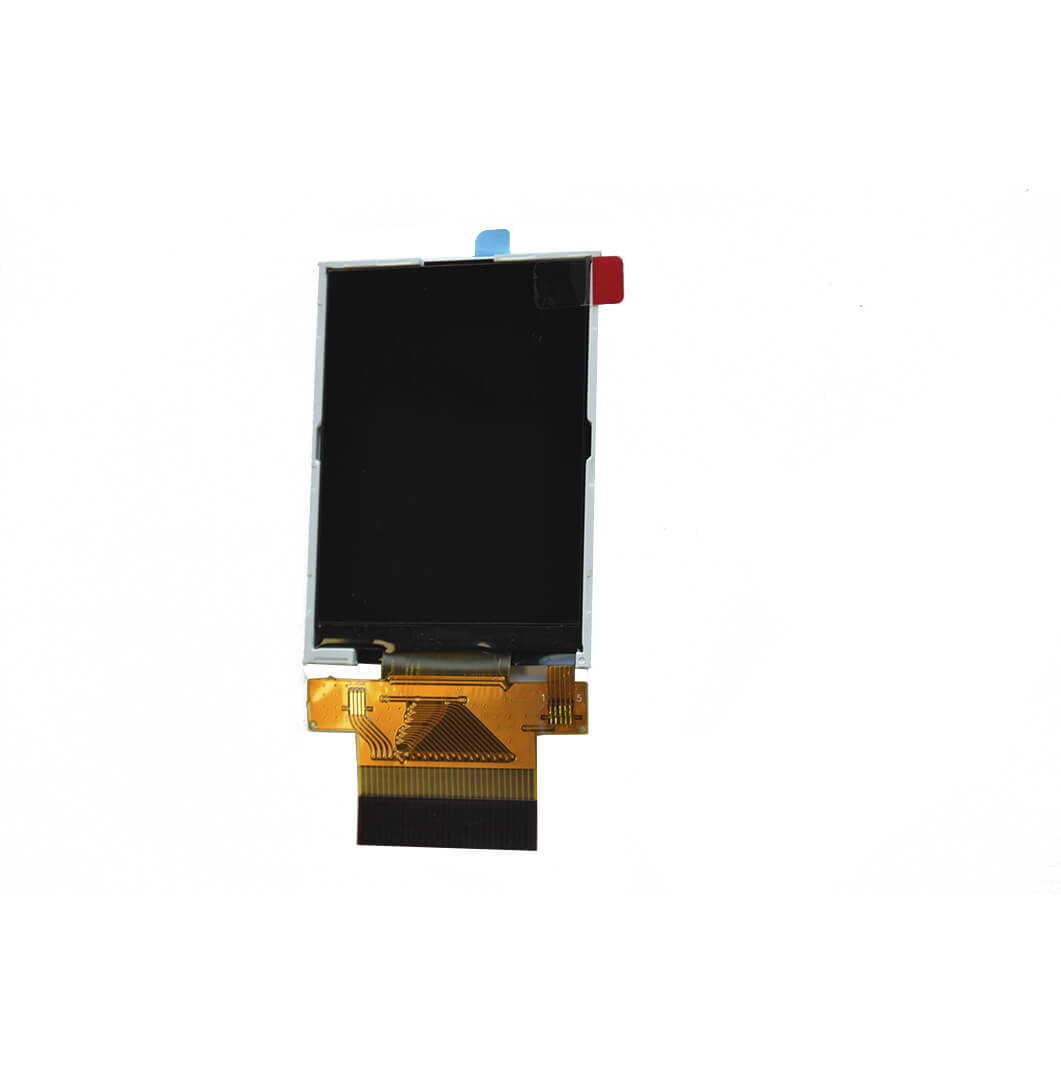

2.8″ TFT Non-Touch 240×320 – PH240320T-063-L-Q

Manufacturer: Powertip

Manufacturer Part No.: PH240320T-063-L-Q

IHL Part No.: JXT240320T-063-L

Screen Size: 2.8″

LCD Type: Normally white , Transmissive type

Touch Panel Type:

LCD Interface: 24-bits RGB

Touch panel Output Interface:

Touch Panel IC:

Display Resolution: 240x320px

Viewing Direction: 12 O’clock

Viewing Angle(T/B/L/R): 45/50/50/50

Outline Dimension: 50.0(W)x69.2(L)x3.05(H)mm

Active Area: 43.2(W)x57.6(L)mm

Average Brightness: 255cd/m²

Logic Supply Voltage (Typ.): 2.8V

Contrast Ratio: 250:1

Backlight: LED Backlight
