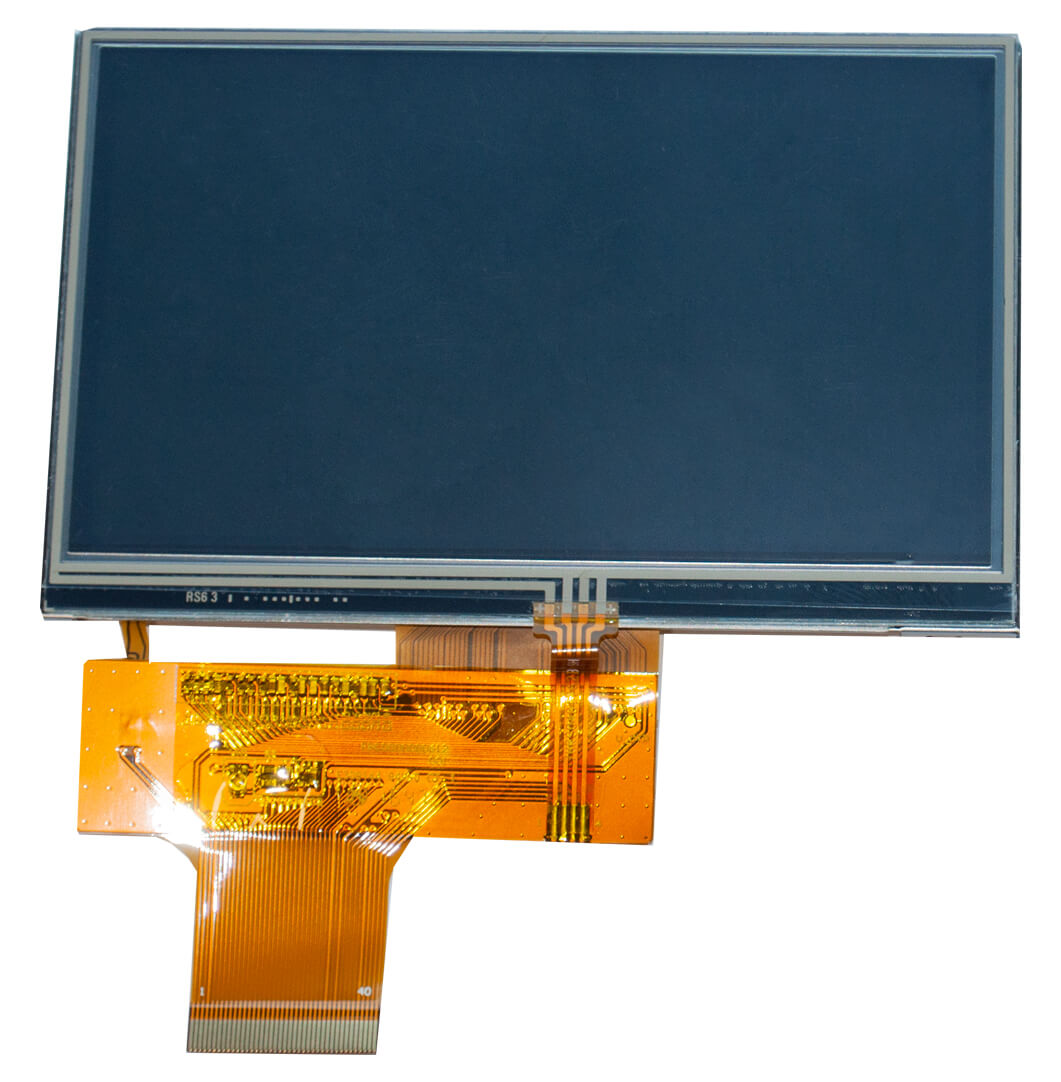

4.3″ TFT Resistive 480×272 – PH480272T-006-IBB

Manufacturer: Powertip

Manufacturer Part No.: PH480272T-006-IBB

IHL Part No.: JXT480272T-006-IBB

Screen Size: 4.3″

LCD Type: a-Si TFT , Normally white, Transmissive type

Touch Panel Type: Resistive

LCD Interface: 24-bits RGB

Touch Panel Output Interface:

Touch Panel IC:

Display Resolution: 480x272px

Viewing Direction: 6 O’clock

Viewing Angle (T/B/L/R): 60/60/60/60

Outline Dimension: 105.5(W)x67.2(L)x4.7(H)mm

Active Area: 95.04(W)x53.856(L)mm

Average Brightness: 500cd/m²

Logic Supply Voltage (Typ.): 3.3V

Contrast Ratio: 600

Backlight: White LED
