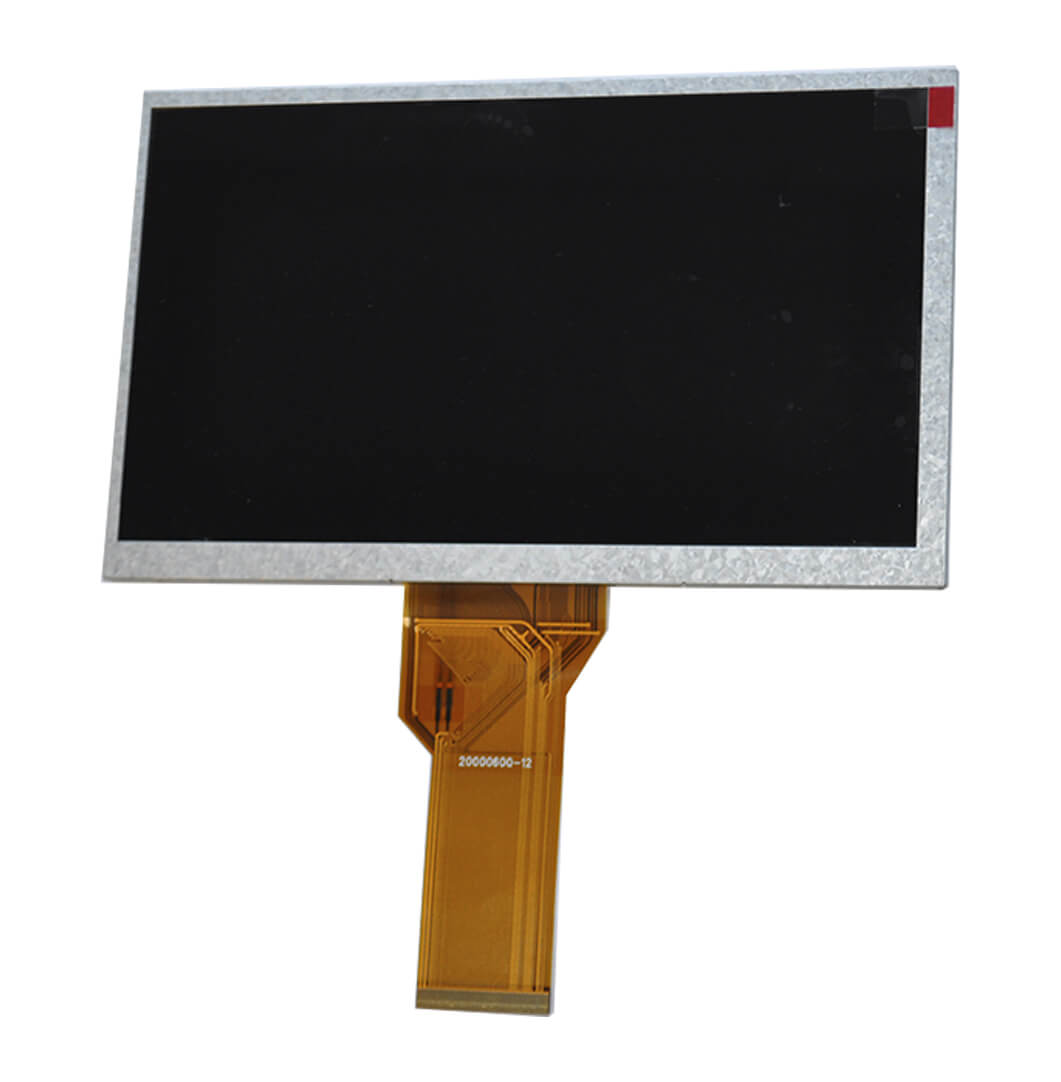

7″ TFT Non-Touch 800×480 – PH800480T013-I-Q

Manufacturer: Powertip

Manufacturer Part No.: PH800480T013-I-Q

IHL Part No.: JXT800480T-013-I

Screen Size: 7.0″

LCD Type: a-Si TFT , Normally white , Transmissive type

Touch Panel Type: N/A

LCD Interface: RGB

Touch Panel Output Interface: N/A

Touch Panel IC: N/A

Display Resolution: 800x480px

Viewing Direction: 6 O’clock

Viewing Angle (T/B/L/R): 50/70/70/70

Outline Dimension: 164.9(W)x100.0(L)x3.4(H)mm

Active Area: 154.08(W)x85.92(L)mm

Average Brightness: 300cd/m²

Logic Supply Voltage (Typ.): 3.3V

Contrast Ratio: 500:1

Backlight: LED B/L
