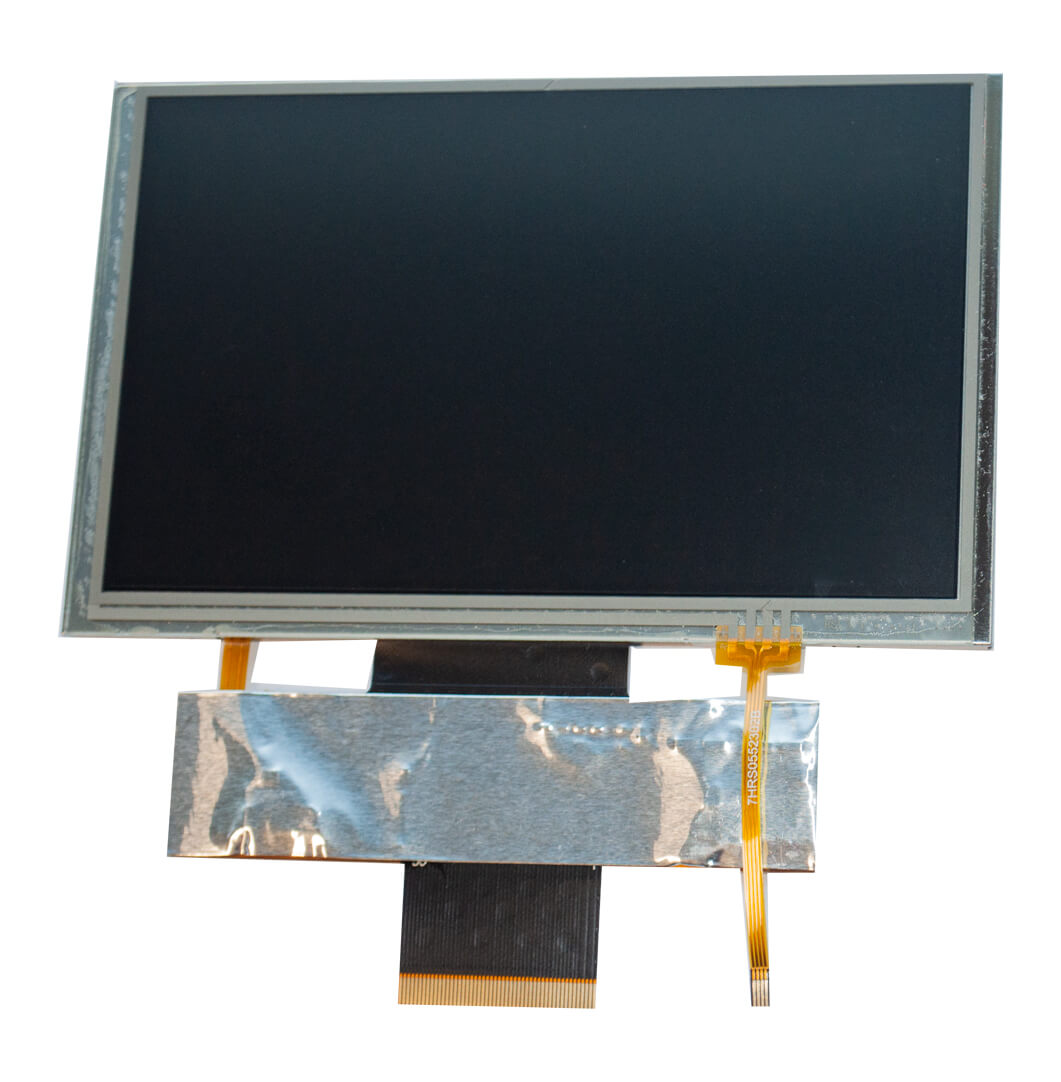

5″ TFT Resistive 800×480 – PH800480T024-IHB

Manufacturer: Powertip

Manufacturer Part No.: PH800480T024-IHB

IHL Part No.: JXT800480T-024-IHB

Screen Size: 5.0″

LCD Type: a-Si TFT , Normally white, Transmissive type

Touch Panel Type: Resistive

LCD Interface: 24 Bits RGB

Touch Panel Output Interface:

Touch Panel IC:

Display Resolution: 800x480px

Viewing Direction: 6 O’clock

Viewing Angle: 60/60/60/60

Outline Dimension: 121.0(W)x75.9(L)x4.2(H)mm

Active Area: 109.0(W)x65.8(L)mm

Average Brightness: 780 cd/m²

Logic Supply Voltage (Typ.): 3.3V

Contrast Ratio: 600:1

Backlight:White LED
