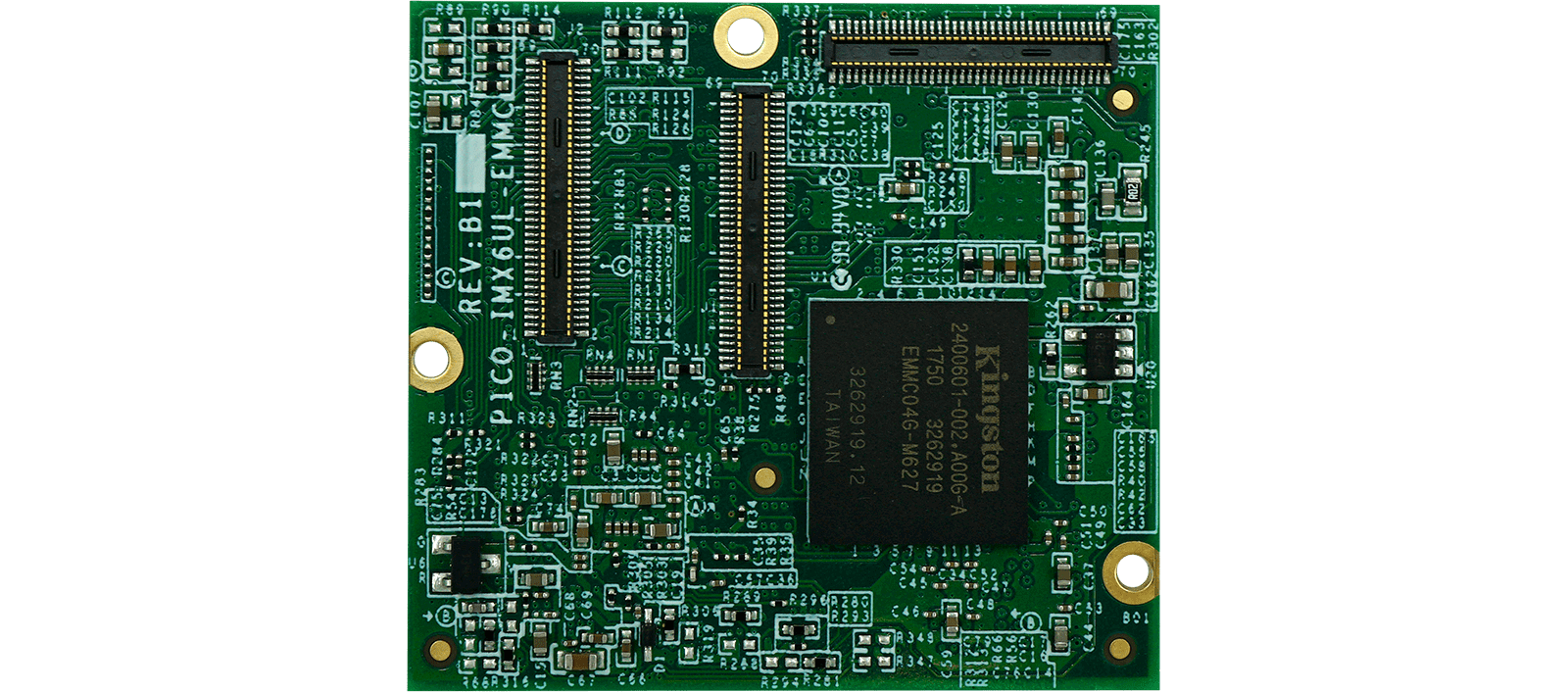

PICO-IMX6ULL

Contact Us

Since 2014, the PICO Module has been a standard in the industry. At just 37x40mm, PICO modules provide pin-to-pin compatibility from low-cost single-core i.MX6UL to the 64-bit quad-core i.MX8M Mini.

Originally designed to provide an ARM-based expansion to Intel’s Edison module, PICO modules integrate an SOC, RAM, e.MMC, power management, and an option certified combo wireless (WLAN + BT) module.

Core System
Processor: NXP i.MX6ULL, NXP i.MX6UL

Architecture: ARM Cortex-A7

PMIC: NXP PF3000

Memory: Upto 1GB DDR3L

Storage: 4GB eMMC

Board-to-Board Connector: PICO 70-pin Hirose connectors

System on Module: PICO SOM

Connectivity: Network LAN, RMII

Wi-Fi: Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional)

Bluetooth: Qualcomm Atheros QCA9377 Bluetooth (optional)

Antenna: MHF4 connector (optional)

Signalling
I/O: RMII, RGB TTL, USB, USB OTG, I²S, CAN, UART, SPI, I²C, PWM, GPIO

Video
GPU Engine: Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline

Audio
Audio Codec: On carrier board

Audio Interface: I²S (1 channel)

Power Specifications
Power Input: 5V DC +/-5%

Power Consumption: Depending on Configuration

Operating Systems
Standard Support: Linux, Yocto, Ubuntu

Extended Support: Commercial Linux

Environmental and Mechanical
Dimensions: 37 x 40 mm

Form Factor: PICO

Relative Humidity: 10% to 90%

MTBF: 100,000+ Hours

Shock: 15G half-sine 11 ms duration

Operation Temperature: Commercial: 0° to +60° C, Industrial: -40° to +85° C

Vibration: 1 Grms random 5-500Hz hr/axis

Weight: 8 grams

Certification and Compliance
FCC: FCC ID: 2AKZA-QCA9377

IC: IC: 22364-QCA9377

CE: EN 300 328 v2.2.2, EN 301 893 v2.1.1, EN 55032 / EN 55024

Certification: Compliant with RoHS / REACH directives

Bluetooth Logo: QDID 150839 (Bluetooth 4.2)

  • NXP i.MX 6UL/ULL application processor
  • Low Power Cortex-A7 processor
  • Linux Mainline Support
  • Certified Wi-Fi 5 and Bluetooth LE
