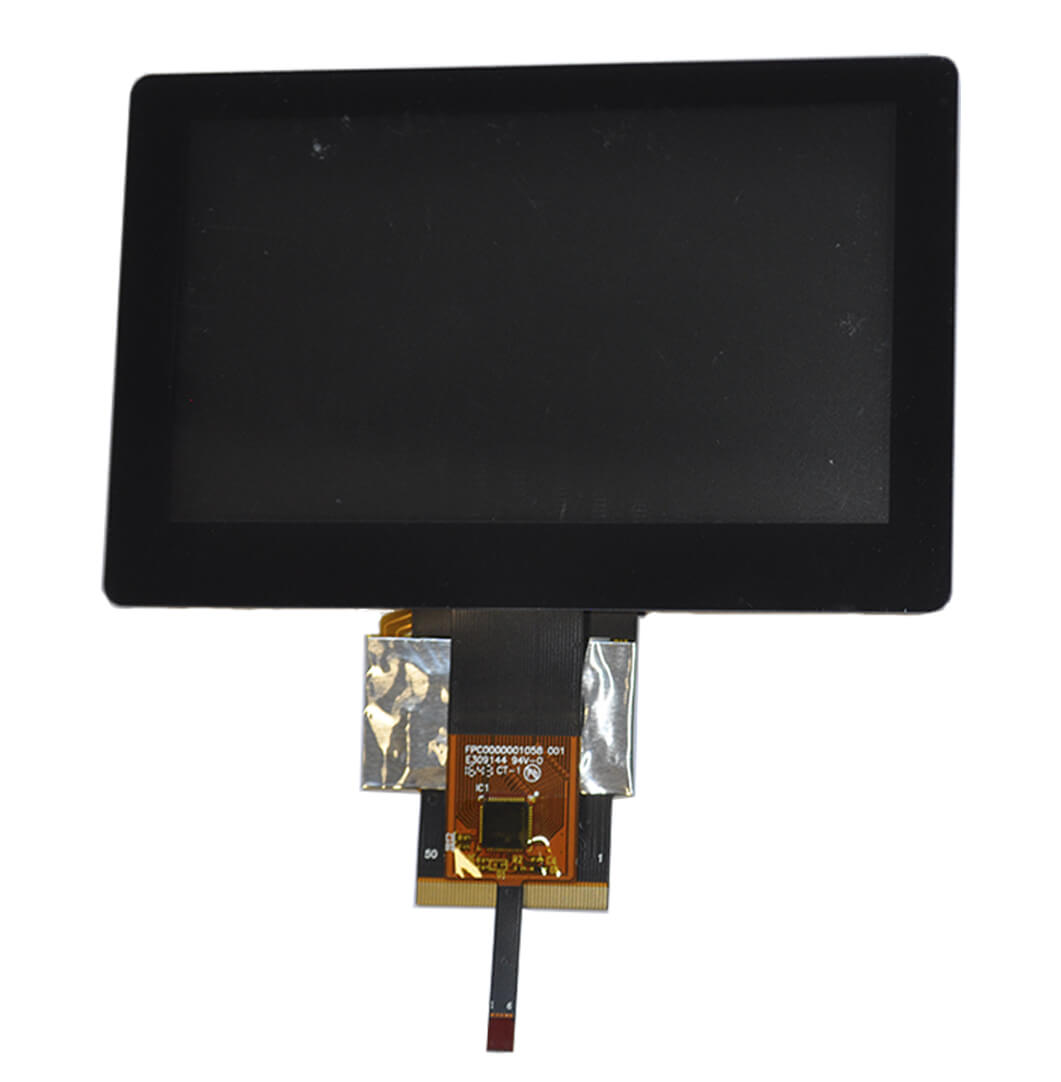

4.3″ TFT PCAP 480×272 – PH480272T009-IHC

Manufacturer: Powertip

Manufacturer Part No.: PH480272T009-IHC

IHL Part No.: JXT480272T-009-IHC

Screen Size: 4.3″

LCD Type: a-Si TFT , Normally white , Transmissive type

Touch Panel Type: Projective Capacitive (PCAP)

LCD Interface: 24 Bits RGB

Touch Panel Output Interface:

Touch Panel IC:

Display Resolution: 480x272px

Viewing Direction: 6 O’clock

Viewing Angle (T/B/L/R): 60/60/60/60

Outline Dimension: 113.2(W)x73.2(L)x3.95(H)mm

Active Area: 95.04(W)x53.856(L)mm

Average Brightness: 850 cd/m²

Logic Supply Voltage (Typ.): 3.3V

Contrast Ratio: 600:1

Backlight:White LED
