VisionCB-8M-ADV

Advanced Carrier Board for VisionSOM-8Mmini Module family
Contact Us

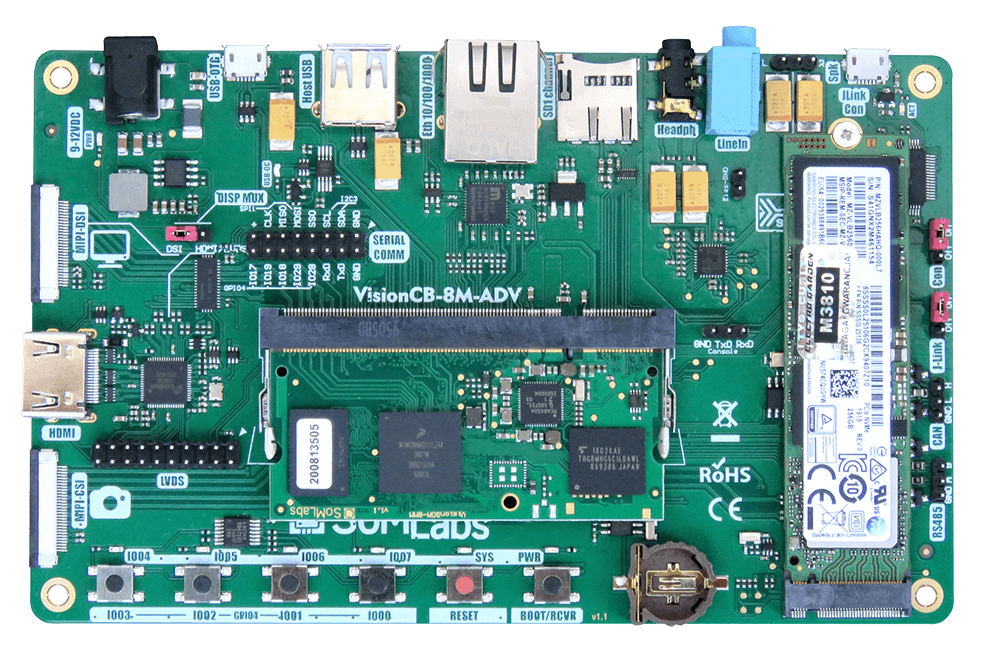

VisionCB-8M-ADV (with SOM with MPU iMX8M mini compatible) is an advanced carrier board for the VisionSOM-8Mmini family of computer-on-modules. Modules are powered by NXP SOC iMX8M mini (quad-core ARM Cortex-A53+ single Cortex-M4). A carrier board, together with a System on Module (SoM), makes a complete development platform similar to SBC. The carrier board houses the most common interfaces such as USB, Ethernet, PCIe (M.2), RS485, CAN FD, HDMI, LVDS, MIPI-DSI, MIPI-CSI, audio codec, etc. A large variety of interfaces allows to use it as both a complete development platform or as a stand-alone end-product.

The carrier board connects with the SoM via a standard SODIMM connector.

VisionCB-8M-ADV carrier board is equipped with  Segger J-Link debugger and Linux serial console port on USB vCOM.

  • Advanced Carrier Board (Base Board) compatible with the VisionSOM-8Mmini family of modules
  • Ready-to-use development systems for building applications based on the VisionSOM-8Mmini modules
  • HDMI and LVDS displays interfaces
  • MIPI-DSI (up to 4 lanes) LCD display interface
  • MIPI-CSI (up to 4 lanes) camera interface
  • M.2 key M connector (2242, 2260 and 2280 sizes)
  • Simplex RS485 interface
  • CAN FD interface
  • 24-bit audio codec
  • On-board RTC with CR1220 battery
  • Built-in microSD card connector
  • Communication interfaces (USB 2.0 host and OTG, 10/100/1000 Mbit Fast Ethernet)
  • Well-suited for applications in industrial automation
  • Ideal for industrial IoT, multimedia and embedded applications
  • Built-in Segger J-Link JTAG debugger
SoM Interface
SoM Interface SODIMM200
SoM Type VisionSOM family of modules based on NXP quad Cortex-A53 and single Cortex-M4 cores (iMX8Mmini)
Programming/Debug Connectors
Built-in Segger J-Link JTAG debugger
Expansion Connectors
GPIO/Serial 2×8 Pin Header (Male, 2.54 mm)
SD card dedicated MicroSD connector
Communication Connectors
PCIe (single lane) M.2 key M connector (2242, 2260, 2280)
Ethernet 1x 10/100/1000Mbit/s, RJ45
CAN FD 1×3 Pin Header (Male, 2.54 mm)
Simplex RS485 1×3 Pin Header (Male, 2.54 mm)
USB Host 1x Type A connectors
USB-OTG 1xMicroUSB connector
Console 1x MicroUSB connector
Console UART 1×3 Pin Header (Male, 2.54 mm)
Display and camera
HDMI output HDMI connector
LVDS output IDC20 2.54mm connector
MIPI-DSI interface 30-pin FFC/FPC connector
MIPI-CSI interface 30-pin FFC/FPC connector
Audio
Stereo Headphone Output Mini Jack 4 poles
Stereo Speaker Output 1×3 Pin Header (Male, 2.54 mm)
Mono Mic Input Mini Jack 4 poles (Headphones Mini Jack)
Headphone Output Power 40 mW/16 Ohm
Speaker BTL Output Power 1 W/8 Ohm
User Interface
4 User pushbuttons
2 System pushbuttons
4 User LEDs
2 System LEDs
Power Supply
DC connector Input Voltage 9-12V DC
Temperature Range
Consumer 0 to +70°C
Mechanical Dimension
Board Size 160mm x 100mm x 18mm
