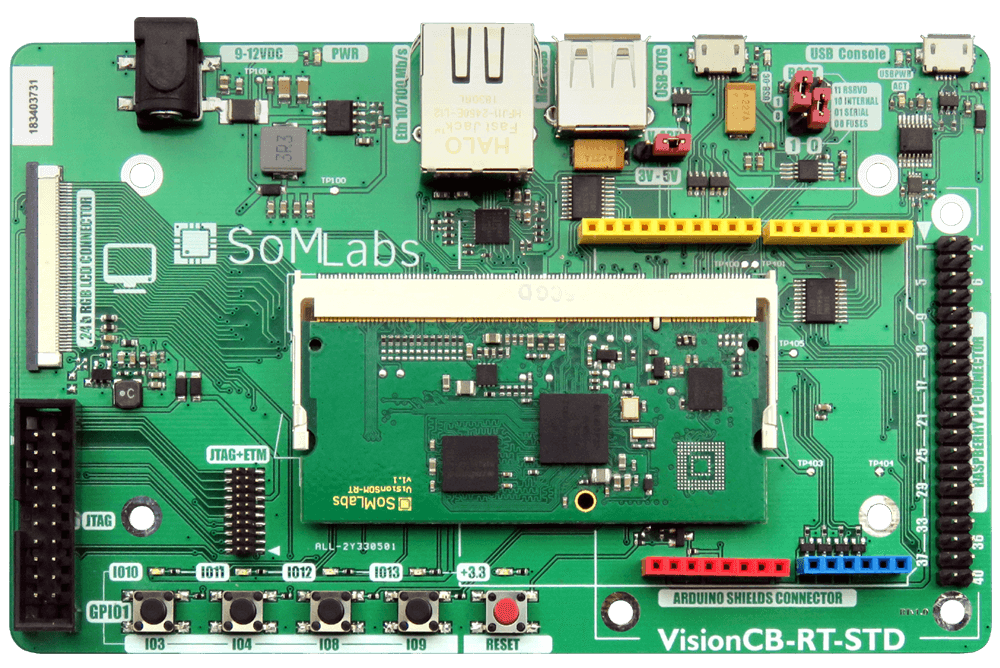

VisionCB-RT-STD – carrier board for the VisionSOM-RT family of computer-on-modules which are powered by NXP i.MX RT microcontrollers (ARM Cortex-M7). A carrier board, together with a System on Module (SoM), makes a complete development platform similar to SBC. The carrier board houses the most common interfaces such as USB, Ethernet, etc. A large variety of interfaces allows to use it as both a complete development platform or as a stand-alone end-product.

The carrier board connects with the SoM via a standard SODIMM connector.

Carrier Board for VisionSOM System-on-Module family

  • Carrier Board (Base Board) compatible with the VisionSOM family of modules
  • Ready-to-use development systems for building applications based on the VisionSOM modules
  • Well-suited for applications in industrial automation
  • Communication interfaces (USB 2.0 host and client, 100 Mbit Fast Ethernet)
  • Arduino Uno Rev. 3 (3.3V and 5V) and Raspberry Pi compatible connectors
  • JTAG and J-Trace connectors
  • Ideal for industrial IoT and embedded applications

SoM Interface

SoM Interface: SODIMM200

SoM Type: VisionSOM family of modules based on NXP i.MX RT microcontroller (ARM Cortex-M7)

Programming/Debug Connectors

JTAG: 20 pin connector 0.10″ (we suggest to use Segger J-Link)

Trace: 19 pin connector 0.05″ (we suggest to use Segger J-Trace)

Expansion Connectors

Arduino Uno Rev. 3: 1×8, 1×6, 1×8, 1×10 Pin Headers (Female)

Raspberry Pi compatible connectors: 2×20 Pin Header (Male)

Communication Connectors

Ethernet: 1x 10/100Mbit/s, RJ45

USB Host: 2x Type A connectors

Console: 1x MicroUSB B connector (via FTDI FT230 UART to USB converter)


Interface: 50-pin FFC/FPC Parallel RGB – 24-bit, (1366 x 768 Max. Resolution)

User Interface

5 Push buttons

5 LEDs

Power Supply

DC connector: Input Voltage 9-12V DC

MicroUSB connector: Input Voltage 5V DC

Mechanical Dimension

Board Size: 98mm x 79mm x 22mm

Temperature Range

Consumer: 0 to +70°C

Mechanical Dimension

Board Size: 130mm x 90mm x 17mm
