VisionCB-STM32MP1-STD

Carrier Board for VisionSOM-STM32MP1 Module family
Contact Us

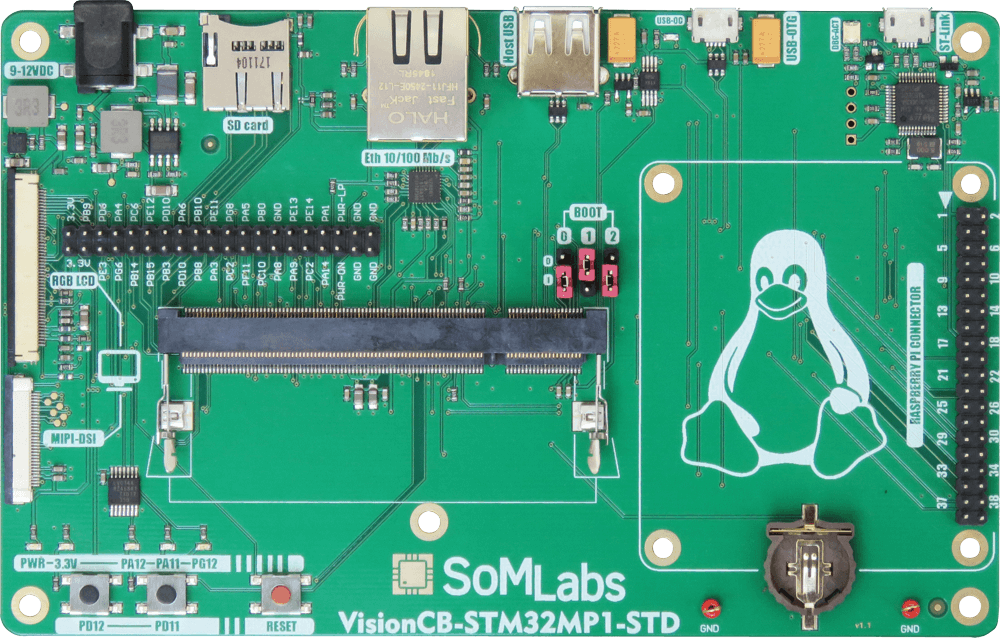

VisionCB-STM32MP1-STD is a carrier board for the VisionSOM-STM32MP1 (STM32MP157) family of computer-on-modules which are powered by STMicroelectronics SOC STM32MP1 (dual core ARM Cortex-A7 + single Cortex-M4). A carrier board, together with a System on Module (SoM), makes a complete development platform similar to SBC. The carrier board houses the most common interfaces such as USB, Ethernet, etc. A large variety of interfaces allows to use it as both a complete development platform or as a stand-alone end-product.

The carrier board connects with the SoM via a standard SODIMM connector.

VisionCB-STM32MP1-STD is equipped with  ST-Link/v2-1 SWD debugger and Linux serial console port on USB vCOM.

  • Carrier Board (Base Board) compatible with the VisionSOM-STM32MP1 family of modules
  • Ready-to-use development systems for building applications based on the VisionSOM-STM32MP1 modules
  • Built-in ST-Link/V2-1 SWD debugger
  • MIPI-DSI (2 lanes) and parallel LCD interface
  • Built-in microSD card connector
  • Communication interfaces (USB 2.0 host and client, 100 Mbit Fast Ethernet)
  • Well-suited for applications in industrial automation
  • Raspberry Pi compatible connectors
  • Ideal for industrial IoT and embedded applications
SoM Interface
SoM Interface SODIMM200
SoM Type VisionSOM family of modules based on STMicroelectronics dual Cortex-A7 and single Cortex-M4 core STM32MP1
Programming/Debug Connectors
Built-in ST-Link/v2-1 SWD debugger
Expansion Connectors
Raspberry Pi compatible connectors 2×20 pin header (male, 33 GPIOs)
SD card dedicated MicroSD connector
Communication Connectors
Ethernet 10/100Mbit/s, RJ45
USB Host Type A connectors
USB-OTG MicroUSB connector
Console MicroUSB connector
Display
Parallel interface 50-pin FFC/FPC Parallel RGB – 24-bit
MIPI-DSI interface 30-pin FFC/FPC connector
User Interface
3 Pushbuttons
5 LEDs
Power Supply
DC connector Input Voltage 9-12V DC
RTC battery Socket for CR1220
Temperature Range
Consumer 0 to +70°C
Mechanical Dimension
Board Size 160mm x 100mm x 17mm
