VisionSOM-6UL (SLS16Gx)
i.MX6-UL NXP ARM Cortex-A7 single core industrial SoM computer

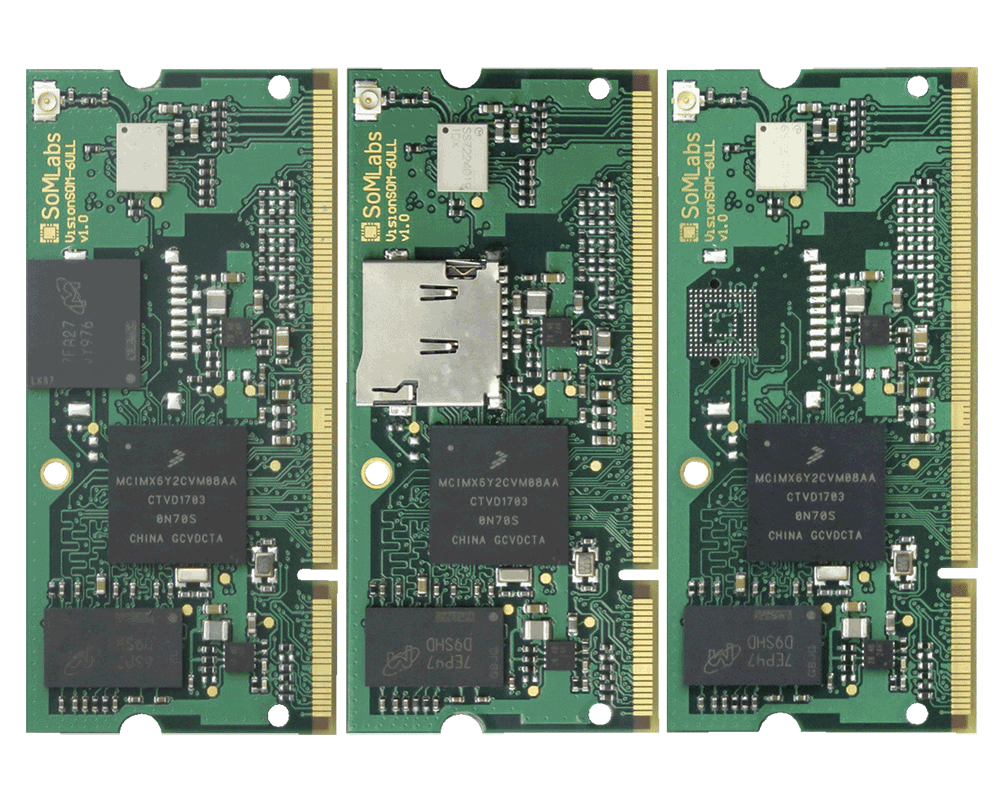

VisionSOM-6ULL (SLS16Yx)
i.MX6-ULL NXP ARM Cortex-A7 single core industrial SoM computer

  • Powered by NXP i.MX 6ULL application processor
  • Core clock up to 900MHz
  • Up to 512MB SDRAM DDR3L
  • Up to 512MB NAND Flash / 32GB eMMC / uSD memory card
  • Optional Murata 802.11b/g/n Wi-Fi and Bluetooth v4.1+EDR module
  • Power-efficient and cost-optimized solution
  • Ideal for industrial IoT and embedded applications
  • Integrated security features

CPU

CPU Name: NXP i.MX 6ULL

CPU Type: Cortex-A7

CPU Cores: 1

CPU Clock (Max): 900MHz

Memory

RAM: 64…512MB

eMMC: 4…32GB

NAND: 128…512MB

uSD Card Slot: option

Display

Interface: Parallel RGB – 24-bit, (1366 x 768 Max. Resolution)

GPU

Graphics Acceleration: NXP PXP v2.0 2D Graphics Accelerator for LCD-TFT

Networking

Wi-Fi: Wi-Fi 802.11b/g/n

Bluetooth: Bluetooth v4.1

Ethernet: 2x 10/100Mbit/s

Connectivity

RTC: Built-in (requires external battery)

I2C: up to 4 channels

SPI: up to 4 channels

CAN: up to 2 FlexCAN

UART: up to 8 channels

USB: 2 x USB2.0 OTG Host/Device

ADC: 2×12 ADC modules (up to 10 input channels)

Audio

Audio interfaces: I2S x3, S/PDIF Tx/Rx, ESAI x1, ASRC, Medium Quality audio System

Security

Advanced Security: AES-128, ARM TrustZone, RNG

OS Support

LINUX: Yocto, Debian, Buildroot

Temperature Range

Industrial: –40 to +85°C (without Wi-Fi/BLE)

Semi Industrial: –30 to +70°C (with Wi-Fi/BLE)

Consumer: 0 to +70°C

Power Supply

Input Voltage: 5V DC

Mechanical Dimension

SOM Size: 67mm x 32mm x 4mm

Mechanical Connectors

Antenna connector for Wi-Fi/BLE: U.FL on SOM

SoM Footprint: SODIMM200

Other

Altium Designer’s library file is available for all SoM variants (SCH and PCB)
