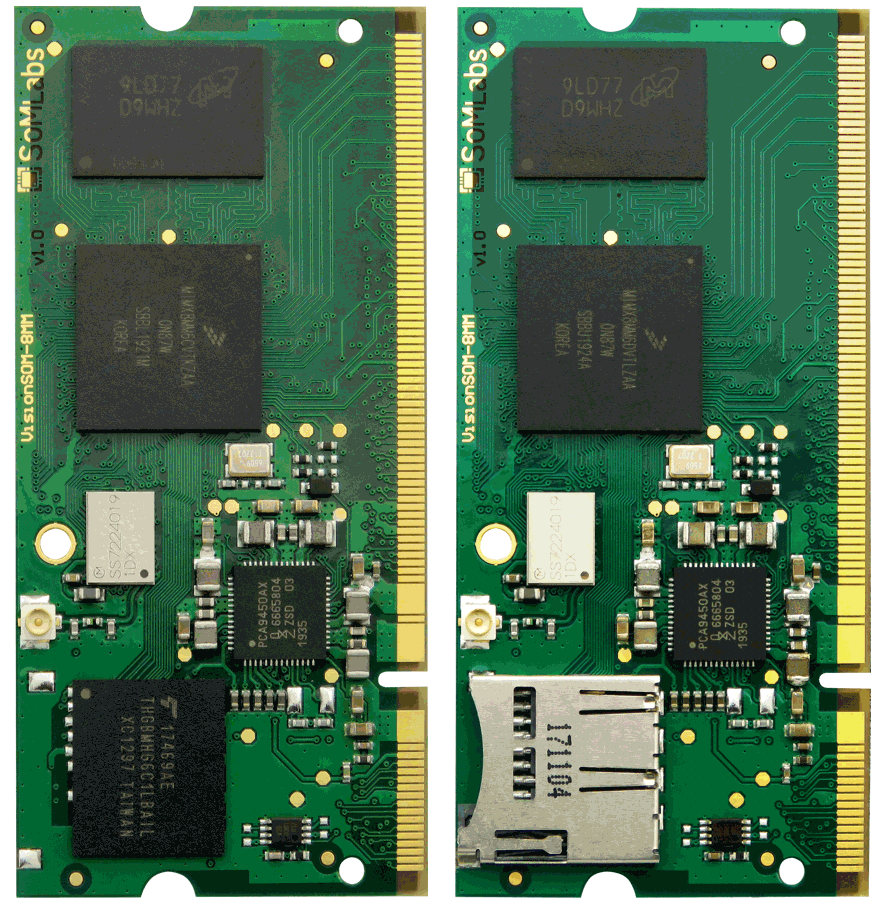

VisionSOM-8Mmini (SLS23)

i.MX8M mini NXP ARM Cortex-A53 quad core and Cortex-M4F industrial SoM computer
Contact Us

The VisionSOM-8Mmini family is a SODIMM-sized SoM based on the NXP iMX8Mmini application processor which features a heterogeneous quad cores ARM Cortex-A53 together with an ARM Cortex-M4 core as well as an advanced 3D Graphics Processing Unit (GPU) Open GL 2.0 ES compatible and VPU (encoder/decoder) HD1080p60 H.264, HD1080p60 H.265.

The quad Cortex-A53 and single Cortex-M4 based VisionSOM provides full flexibility to support real-time application while supporting Linux and advanced HMI.

The VisionSOM-8Mmini is a general-purpose highly integrated SoM (System on Module). The module is featuring high computation power. The option is Bluetooth v5.1  fully certified Wi-Fi (802.11b/g/n) and Bluetooth (BLE 5.1) module. This module simplifies the carrier board design and is ideally suited for wireless application. The VisionSOM-8Mmini provides a variety memory configuration, including a flexible range of LPDDR4, eMMC and SD memory card.

The VisionSOM-8Mmini supports connections to a variety of interfaces:

  • two high-speed USB on-the-go with PHY,
  • 1Gbit Ethernet,
  • audio,
  • advanced Full HD display with 3D coprocessing and VPU encoder/decoder,
  • touch panel and serial interfaces.

In addition, the system supports industrial-grade embedded applications.

  • Powered by NXP i.MX8M mini application processor
  • Quad core ARM Cortex-A53 (at speed up to 1,8GHz)
  • ARM Cortex-M4 core (at speed up to 400MHz)
  • Up to 8GB LPDDR4
  • Up to 32GB eMMC/uSD memory card
  • Vivante GC320, Vivante GC NanoUltra/OpenGL ES2.0
  • Built-in VPU (encoder/decoder) HD1080p60 H.264,HD1080p60 H.265
  • MIPI-DSI interface (FullHD, 4 lane)
  • MIPI-CSI2 interface (4 lane)
  • PCIe 2.0 interface
  • 1Gbit Ethernet
  • Optional Murata 802.11b/g/n Wi-Fi and Bluetooth v5.1 module
  • Power-efficient and cost-optimized solution
  • Ideal for industrial IoT and embedded applications
  • Integrated security features
  • Yocto/Android support
CPU Name i.MX8M Mini Quad
Application Domain Quad ARM Cortex-A53 core (at speed up to 1,8GHz)
Real-Time Domain ARM Cortex-M4F (at speed up to 400MHz)
RAM (Application Domain) up to 8GB LPDDR4
Flash (Application Domain) up to 32 GB eMMC
Interface MIPI-DSI – 4 lane interface
GPU 3D Vivante GC NanoUltra/2D Vivante GC320
Resolution Full HD 1080p60
VPU 1080p60 H.264, VP8 encoder and more
Interface MIPI-CSI – 4 lane interface
Ethernet 10/100/1000
WiFi 802.11b/g/n
BLE Bluetooth v5.1
I2C up to 4x
SPI up to 3x
USB 2 x USB-OTG 2.0
Digital Interfaces up to 5xSAI (I2S, AC97, TDM, codec/DSP and DSD)
Digital Microphones up to 8xPDM
eFuses Yes
ARM Trust Zone Yes
Elliptic Curve Crypto Yes
OS Support
Application Domain Linux/Android
Real-Time Domain FreeRTOS
Temperature Range
Industrial -40 to +85oC
Power Supply
Input Voltage 5V DC
Mechanical Dimension
SOM Size 67mm x 32mm x 4mm
Mechanical Connectors
Antenna connector for Wi-Fi/BLE U.FL on SOM
SoM Footprint SODIMM200
Altium Designer’s library file is available for all SoM variants (SCH and PCB)
