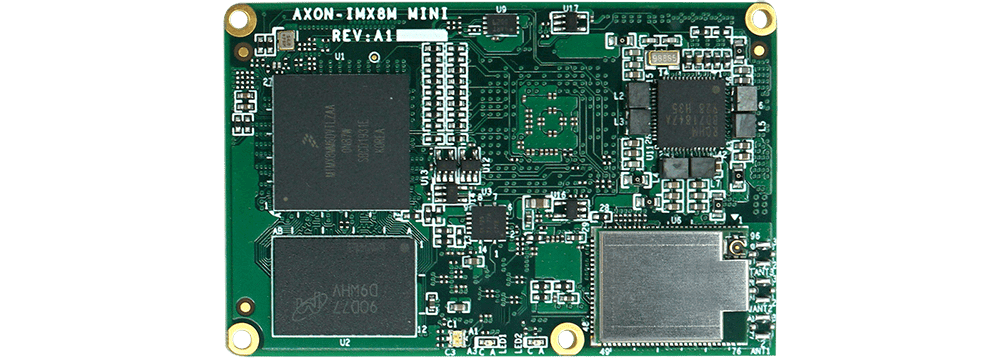

AXON-IMX8M-MINI

Contact Us

In the body, the axon is what delivers the signal from the neuron to other cells such as muscle cells, sensory cells, or other neurons. AXON System-on-Modules are the edge processing solution for applications requiring the highest amount of I/O for sensory input, actuation control, and edge processing.  At just 37x58mm, with a PCB-footprint optimized board-to-board connector, AXON modules  integrate an NXP i.MX8M series SOC, RAM, e.MMC, PMIC, LAN PHY, and optionally includes a certified combo wireless (WLAN+BT) module.

There are 2 pin-compatible modules available featuring the high-performance AI-acceleration of  i.MX8M Plus, cost-effective and low-power i.MX8M Mini. AXON-IMX8M-MINI integrates an FPGA to provide high I/O capability as well as the possibility to design-in custom logic without the need for an FPGA on a carrier board.

Core System
Processor: NXP i.MX8M Mini

Processor Speed: 1.8 Ghz

Architecture: ARM Cortex-A53 + M4

PMIC: ROHM BD71847

Memory: Upto 8GB LPDDR4

Storage: 32GB eMMC (default)

Board-to-Board Connector: AXON 80-pin Hirose connectors

Connectivity
Network LAN: 1x Atheros AR8035 Gigabit LAN

Wi-Fi: Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional)

Bluetooth: Qualcomm Atheros QCA9377 Bluetooth (optional)

Antenna: MHF4 connector (optional)

Signaling
I/O: LAN, MIPI CSI, MIPI DSI, PCIe, USB, USB OTG, I²S, SDIO, UART, SPI, I²C, PWM, GPIO

Video
GPU Engine: Vivante GC7000Lite

Video decode: 1080p60 H.264

Video encode: 1080p60 H.264

Camera: MIPI CSI (4 lanes)

Audio
Audio Codec: On carrier board

Audio Interface: I²S (2 channel)

Power Specifications
Power Input: 5V DC +/-5%

Power Consumption: Depending on Configuration

Operating Systems
Standard Support: Linux, Yocto, Android, Ubuntu

Environmental and Mechanical
Dimensions: 58 x 37 mm

Form Factor: AXON

Relative Humidity: 10% to 90%

MTBF: 100,000+ Hours

Shock: 15G half-sine 11 ms duration

Operation Temperature: Commercial: 0° to +60° C, Industrial: -40° to +85° C

Vibration: 1 Grms random 5-500Hz hr/axis

Weight: 12 grams

Certification and Compliance: FCC, FCC ID: 2AKZA-QCA9377

IC: IC: 22364-QCA9377

CE: EN 300 328 v2.2.2, EN 301 893 v2.1.1, EN 55032 / EN 55024

Certification: Compliant with RoHS / REACH directives

Bluetooth Logo: QDID 150839 (Bluetooth 4.2)
