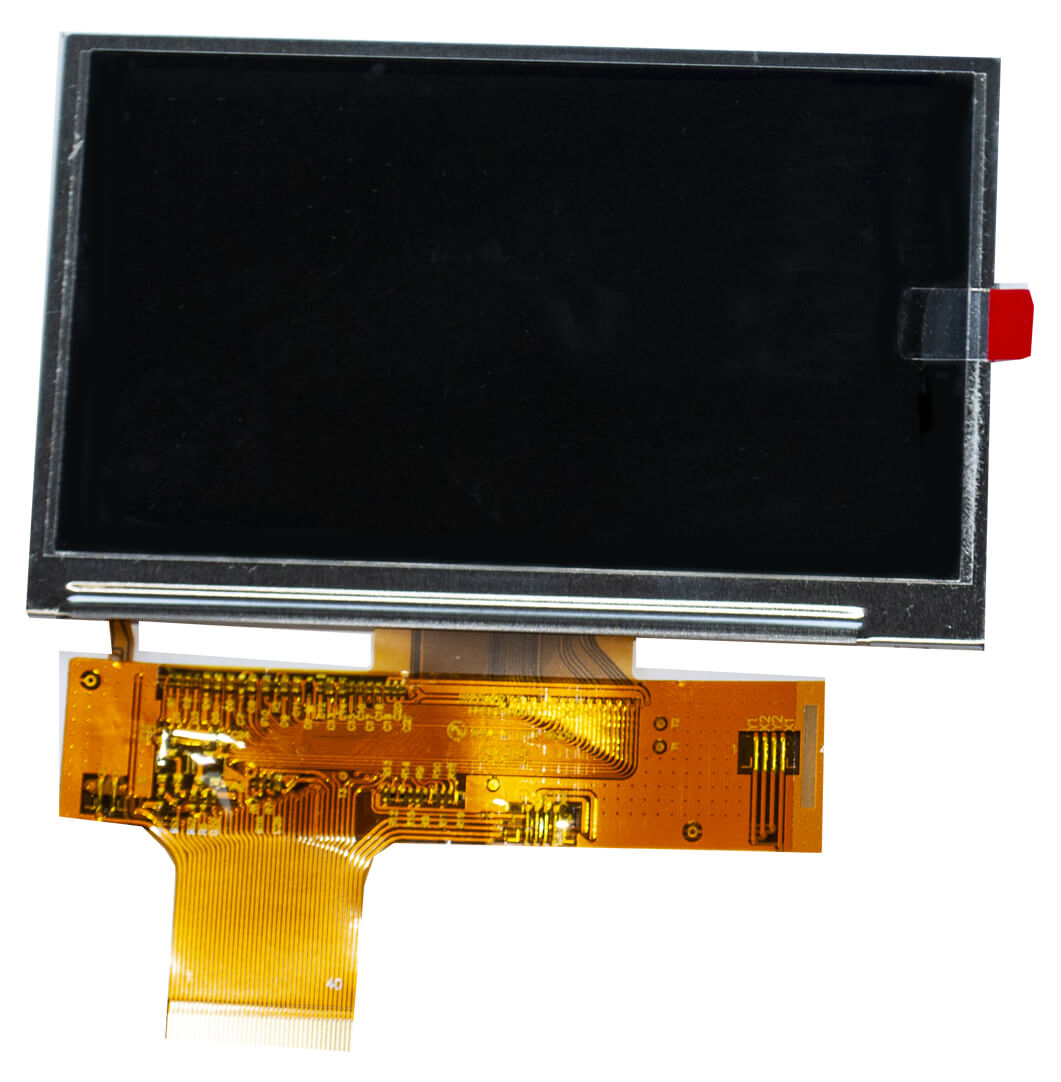

4.3″ TFT – 480×272 – PH480272T-005-I01-Q

Manufacturer: Powertip

Manufacturer Part No.: PH480272T-005-I01-Q

IHL Part No.: JXT480272T-005-I01

Screen Size: 4.3″

LCD Type: a-Si TFT , Normally white , Transmissive type

Touch Panel Type:

LCD Interface: 24-bits RGB

Touch Panel Output Interface:

Touch Panel IC:

Display Resolution: 480x272px

Viewing Direction: 6 O’clock

Viewing Angle (T/B/L/R): 45/50/50/50

Outline Dimension: 105.5(W)x67.2(L)x3.5(H)mm

Active Area: 95.04(W)x53.856(L)mm

Average Brightness: 420 cd/m²

Logic Supply Voltage (Typ.): 3.3V

Contrast Ratio: 250:1

Backlight: LED B/L
