Manufacturer: Protek Devices

Manufacturer Part No.: PSOT05-LF-T7

IHL Part No.: PSOT05-LF-T7

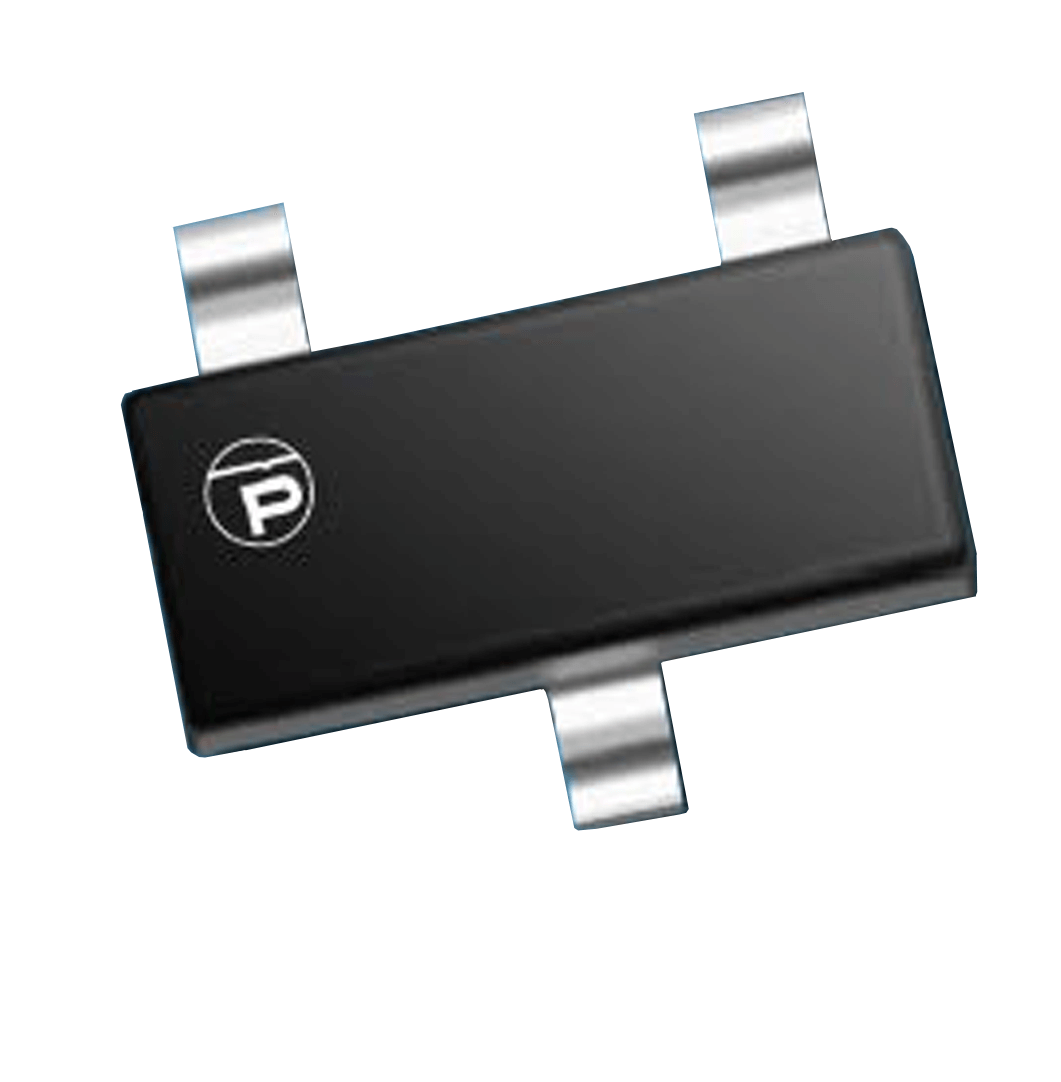

  • Package: Molded JEDEC SOT-23
  • ESD Rating per IEC 61000-4-2 (Air): 15.0kV
  • ESD Rating per IEC 61000-4-2 (Contact): 8.0kV
  • ESD Protection:
  • Standoff Voltage, Vwm: 5.0V
  • Breakdown Voltage, VBR: 6.0V
  • Clamping Voltage, Vc: 9.8V
  • Peak Pul Current, IPP: 42A
  • Leakage Current @ Vwm: 20µA
  • Capacitance: 210pF
  • Peak Pulse Power per Line: 500.0W
  • Operating Temp: -55 to 150°C
  • Storage Temp: -55 to 150°C
  • Approximate Weight: 8mg
